Car Electrical Problems: Common Causes, Checks and Fixes

Most car electrical faults come down to four causes: a battery that has lost capacity, an alternator that is no longer charging properly, a blown fuse, or a poor earth connection. Work through those in that order and you will identify the majority of problems before anything expensive gets involved. What follows covers how the system fits together, the symptoms of each common fault, the checks you can make yourself with a multimeter and a fuse puller, and the point at which the job needs a specialist.

What makes up a car's electrical system?

A modern car runs two overlapping systems: the power supply that charges and delivers electricity, and the network of control modules that decides what to switch on.

The two things people overlook are earths and connectors. Current has to get back to the battery, and a corroded earth strap between the engine and the body will produce symptoms that look like half a dozen separate faults. Similarly, water finding its way into a multiplug connector behind a bumper or in a door will cause intermittent faults that come and go with the weather.

What are the most common car electrical faults?

How do you test a car battery?

Use a multimeter across the battery terminals with the car switched off and preferably left for a few hours, so you are reading a rested voltage rather than a surface charge.

With the engine running, measure again. A healthy charging system reads somewhere between about 13.8V and 14.4V. Much below that and the alternator, its belt or its regulator is at fault. Much above 15V suggests a regulator failure, which will boil a battery dry.

Before you condemn a battery, do the free checks:

• Clean any white, blue or green corrosion off the terminals with a brush and a solution of bicarbonate of soda in warm water. Rinse and dry thoroughly.
• Disconnect the negative lead first and reconnect it last, to avoid shorting a spanner against the bodywork.
• Make sure the clamps are properly tight and the battery clamp bracket is secure.
• Check the earth strap from the battery or engine to the body. Corrosion here mimics a flat battery.

If the battery is over four or five years old, does mostly short journeys, or goes flat again within days, it is usually the battery itself. Note that cars with stop start need an AGM or EFB battery of the correct type, and many need the new battery coding to the vehicle so the charging strategy is right. Fitting a standard battery to a stop start car normally results in a short life and stop start that never works again.

A battery that goes flat over a week or two when the car is unused points to a parasitic drain. Common culprits are aftermarket alarms and trackers, dash cams wired to a permanent live, boot or glovebox lights that never switch off, and a module that fails to go to sleep. Finding one properly means measuring current draw with the car locked and left to settle, which is a job for a garage with the right meter and patience.

How do you jump start a car safely?

Check the handbook first. Many modern cars have a dedicated positive jump point under the bonnet and a designated earth stud, because the battery itself may be in the boot or under a seat. Some hybrids and electric cars have specific procedures, and you must never attempt to jump anything from the high voltage traction system.

1. Park the donor car close enough for the leads to reach but not touching the flat car. Switch both off, handbrakes on, both in neutral or park.
2. Connect the red lead to the positive terminal or jump point on the flat car, then to the positive on the donor.
3. Connect the black lead to the negative on the donor car, then the other end to a solid unpainted metal earth point on the flat car, such as an engine bracket or the designated earth stud. Do not put it on the flat battery's negative terminal, because that is where sparks meet hydrogen gas.
4. Start the donor car and let it run for a few minutes.
5. Start the flat car. If it will not turn over after a few attempts, stop and investigate rather than cranking repeatedly.
6. Disconnect in exactly the reverse order, keeping the clamps apart.
7. Drive for at least twenty to thirty minutes, ideally with lights and heated screens off, or better, put the battery on a proper charger. A short trip will not replace what starting the car took out.

A lithium jump pack does the same job without a second car and is worth carrying, particularly if the car is used infrequently. If the car needs jumping more than once, something is wrong. Get the battery and the charging system tested rather than making a habit of it.

Alternator, starter, fuses and wiring: how to check each

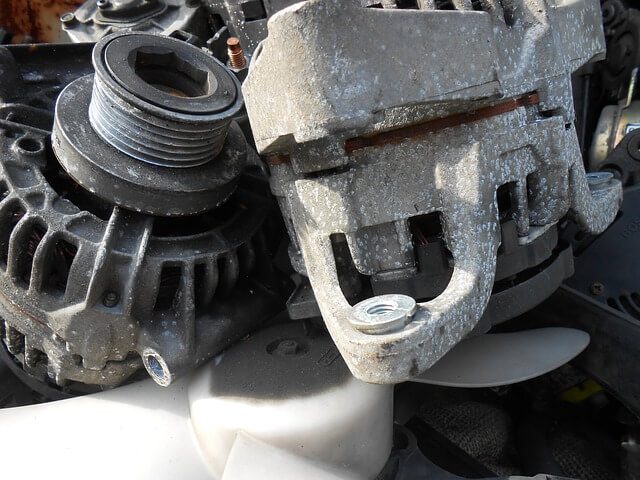

Alternator

Symptoms are a battery warning light while driving, headlights that dim at idle and brighten as you rev, a whining or growling noise from the front of the engine, and a battery that goes flat despite being new. Test it by measuring voltage at the battery with the engine running, as above. Before condemning the unit, check the drive belt for glazing, cracks and correct tension, and check the large output cable and its connections. A slipping belt produces exactly the same symptoms as a dead alternator and costs a fraction to fix.

Starter motor

A single heavy click with the lights staying bright usually means the solenoid is engaging but the motor is not turning, and that generally means the starter. Rapid clicking normally means low battery voltage instead. The old trick of tapping the starter body while someone turns the key can free a sticking motor, but it is a diagnosis rather than a repair. Before replacing the starter, check the heavy earth strap between engine and body, because a bad earth produces the same symptoms.

Fuses

• Find the fuse box or boxes. Most cars have one in the cabin, often behind a panel by the driver footwell or the end of the dashboard, and one under the bonnet.
• Use the diagram on the fuse box lid or in the handbook to identify the right fuse.
• Pull it with the plastic puller and look at the metal strip through the body. If it is broken or discoloured, it has blown.
• Replace with exactly the same amperage. Fitting a higher rating removes the protection and can set the loom on fire.
• If the new fuse blows straight away, stop. There is a short circuit, and hunting it needs a wiring diagram and proper test equipment.

Wiring and earths

Look for chafed insulation where a loom passes over a sharp edge or a bracket, green corrosion inside connectors, and rodent damage, which is more common than most owners expect on cars parked up for long periods. Flex suspect sections gently while the circuit is live and see if the fault comes and goes. Broken wires inside the flexible boot between door and body are the classic cause of intermittent windows, mirrors and locking, because they flex thousands of times.

Any repair should be soldered or crimped properly and heat shrunk, then supported so it does not flex. Twisted wires wrapped in tape will fail again, usually in the rain.

Why do lights, windows and central locking fail?

These three account for a large share of everyday electrical complaints and they share a set of causes.

• Lights. Start with the bulb, then the holder and the connector, which corrode where water gets into a light unit through a perished seal or a cracked lens. On cars with LED units the whole assembly is often replaced rather than repaired. Bear in mind that any light not working is an MOT failure, and headlight aim is tested too.
• Windows. Broken wires in the door hinge loom, worn motor brushes, a failed regulator mechanism or a dirty switch. If the motor hums but nothing moves, the regulator cable or clip has usually failed rather than the electrics.
• Central locking. A single door that will not lock is nearly always a failed actuator in that door. All doors failing points to the module, the fuse, or the key fob battery. Try the spare key before assuming the worst, and check whether the fault happens only in wet weather, which suggests water in a door or in the boot lid loom.

When does an electrical fault need a specialist?

Hand it over when any of the following apply:

• A fuse blows repeatedly, or you can smell hot insulation.
• Multiple unrelated systems are affected at once.
• Warning lights are on and you have no way of reading the stored fault codes.
• The fault involves airbags, ABS, or any high voltage system on a hybrid or electric car.
• The fault is intermittent and you have already replaced parts without fixing it.
• The work involves cutting into a loom, or replacing a control module that needs coding to the vehicle.

Replacing parts by guesswork is the most expensive way to fix an electrical fault. A diagnostic session that reads live data and stored codes is almost always cheaper than the second wrong part.

Can bodywork problems cause electrical faults?

Yes, more often than people realise, and it is worth mentioning because the symptoms rarely look like body damage.

Water ingress is the main link. Perished door and boot seals, blocked sunroof or scuttle drains, a boot lid or tailgate that no longer sits flush after a knock, and corroded seams all let water into places where connectors, modules and earth points live. Control modules are frequently mounted under seats or in the boot floor, which are exactly the places water collects. The result is intermittent faults that appear after heavy rain and disappear in a dry spell.

Accident damage is the other link. Bumpers carry parking sensors, cameras, radar units and reversing lamps, and a knock that looks purely cosmetic can pull a connector apart or crack a sensor housing behind the skin. Wing mirrors carry indicators, heaters, folding motors and blind spot sensors. Repairs need to put both the panel and everything behind it back correctly.

If a fault only appears when the car is wet, look at the bodywork before you look at the loom. Getting the bodywork and seals repaired properly is often the actual fix, and on prestige, modified or unusual vehicles where sensors and modules are embedded throughout the panels, specialist repair work keeps the electronics working as well as the panel looking right.

How do you prevent electrical problems?

• Have the battery and charging system tested twice a year, before winter and before summer, since heat does as much damage as cold.
• Keep the terminals clean and the clamps tight, and make sure the battery is properly secured.
• Use a smart trickle charger if the car regularly stands for weeks.
• Take a longer drive occasionally rather than only short trips, so the alternator has time to replace what starting takes out.
• Have aftermarket kit such as dash cams, trackers and audio installed properly and fused, not spliced into the nearest live wire.
• Check the scuttle drains at the base of the windscreen and the drain holes in the doors and sills are clear.
• Fix water leaks and damaged seals as soon as you notice damp carpets or misted windows.
• Deal with warning lights when they appear. A car with a lit engine management light will fail its MOT, and by the time you get round to it there are usually several stored faults instead of one.
